Certifications
ADA Compliant:
ADA Height and Side and Front Reach Compliant
Controls
Number of Vent Speeds:
N/A
Cooktop Details
Combination Match with Oven:
WOES3027L , WOES3030L , WOES5027L , WOES5030L , WOES5930L , WOES7027P , WOES7030P , WOS11EM4 , WOS31ES0 , WOS31ES7 , WOS51EC0 , WOS51EC7 , WOS51ES4 , WOS52EM4 , WOS72EC0 , WOS72EC7 , WOS92EC0 , WOS92EC7 , WOS97EC0 , WOS97ES0 , WOSA2EC0
Cooktop Surface Material:
Glass
Heating Element On Indicator Light:
Yes
Hot Surface Indicator Light:
Yes
Details
Power Outage Compatible:
No
Cooktop Configuration:
All Burners
Cooktop Surface Color:
Black
Installs Over Built-In Oven:
Yes

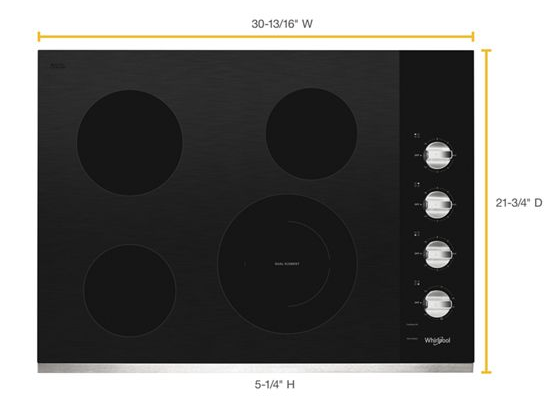

Dimensions
Cutout Depth Max:
20-563/1000 in
Cutout Depth Min:
20-3/8 in
Cutout Width:
29-63/1000 in
Cutout Width Max:
29-563/1000 in
Element/Burner Details
Automatic Pan Detection:
No
Automatic Pan Size Adjustment:
N/A
Center Front Element-Burner Power:
N/A
Center Front Element-Burner Size:
N/A
Center Front Element-Burner Type:
N/A
Center Rear Element-Burner Power:
N/A
Center Rear Element-Burner Size:
N/A
Center Rear Element-Burner Type:
N/A
Cooktop Element Style:
Radiant
Left Front Element-Burner Power:
1,200W
Left Front Element-Burner Size:
6in
Left Front Element-Burner Type:
Standard
Left Rear Element-Burner Power:
1,800W
Left Rear Element-Burner Size:
8in.
Left Rear Element-Burner Type:
Standard
Number of Cooking Element-Burners:
4
Right Front Element-Burner Power:
2500W/1800W
Right Front Element-Burner Size:
10in./6in.
Right Front Element-Burner Type:
Dual
Right Rear Element-Burner Power:
1,200W
Right Rear Element-Burner Size:
6in.
Right Rear Element-Burner Type:
Standard
Exterior Details

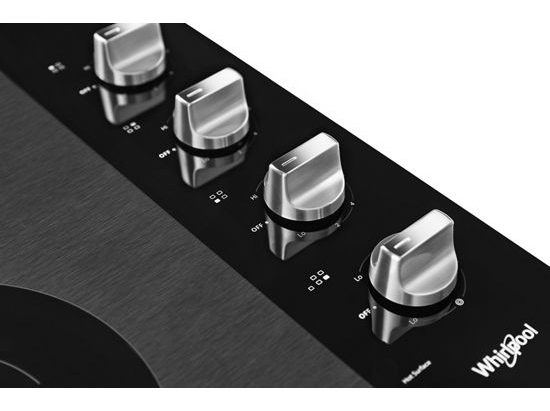

Knob Color:
Stainless Steel
Knob Type:
Dishwasher-Safe Plastic
Grate Details
Oven Cavity Details
Smart Compatibility
Ventilation Details
Dimensions

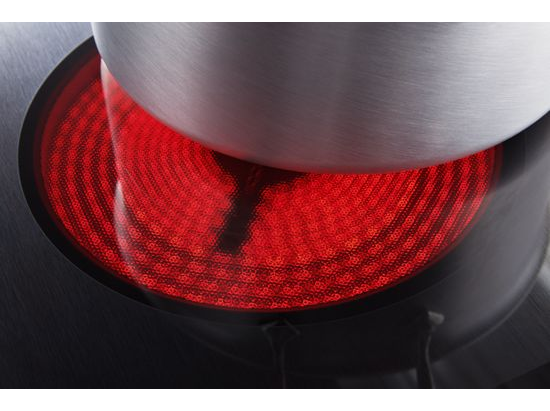

FlexHeat™ Dual Radiant Element
Get two elements in one with a 6" inner ring that's great for smaller pots and pans and a 10" expandable outer ring that makes room for larger cookware.
Easy-Wipe Ceramic Glass Cooktop
Wiping up spills is simple with the easy-to-clean cooktop.
Hot Surface Indicator Light
See when the cooktop's still hot to the touch, even after it's been turned off, with a light that lets you know.

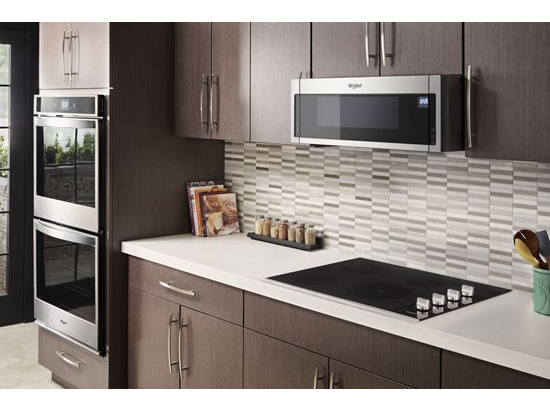

Wall Oven Compatible
Install this cooktop to work with a wall oven or on its own for more flexibility.
ADA compliant
This cooktop meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
6" Extra Element
Cook small dishes like sides and sauces on the 6" Extra Element.
8" Extra Element
Cook small dishes like sides and sauces on the 8" Extra Element.
30 & 40 Amp Installation
Properly install with either a 30 or 40 amp hookup, so there's no need to rewire.
