36" 585 or 1170 CFM Motor Class Custom Hood Liner

Whirlpool: UVL6036JSS
UPC: IMG
$1,124.10 $1,249.00
You save  $124.90 (10.00%)
This 36-inch custom hood liner allows you to conceal ventilation within cabinetry or a decorative hood cover, creating a style all your own. Choose from two compatible blower motor options (sold separately) for complete customization of your ventilation system. A 65,000 BTU rating allows this hood liner to pair with 36-inch ranges or cooktops of comparable output.

New

Stainless Steel

Detail

This 36-inch custom hood liner allows you to conceal ventilation within cabinetry or a decorative hood cover, creating a style all your own. Choose from two compatible blower motor options (sold separately) for complete customization of your ventilation system. A 65,000 BTU rating allows this hood liner to pair with 36-inch ranges or cooktops of comparable output.

Certifications
Energy Star Qualified:
No
Star K Certified:
No
Controls
Control Location:
Hidden
Control Type:
Slide Controls
Number of Vent Speeds:
3
Details
Blower Type:
Centrifugal
Hood Type:
Under Cabinet

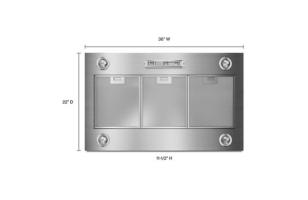

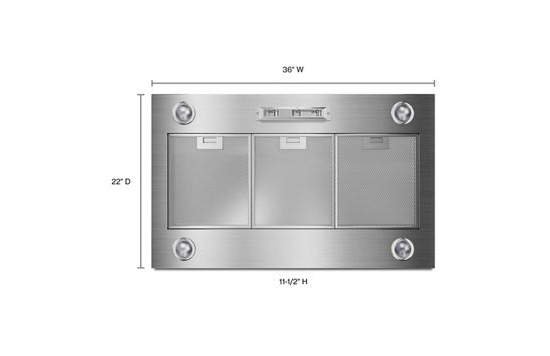

Dimensions
Canopy Height:
11-1/2 in
Depth:
22 in
Gross Weight:
44-53/100 lbs
Net Weight:
28-11/50 lbs
Exterior Details
Duct Length:
13
Ventilation Details
Auto Function:
No
BTU Threshold:
65K/105K
Duct Direction:
Vertical
Duct Outlet Size:
10 in
Duct Type:
Round
Exhaust Vent Location:
Top
Filters:
Grease Filters
HVI (CFM HS Horizontal):
N/A
HVI (CFM HS Vertical):
510/960
Lighting Control Type:
Slider
Night Light:
No
Number of Night Light Settings:
1
Task Light Type:
LED
Task Lighting:
Yes
Vent Fan Location:
Side
Venting:
Exterior
Dimensions
Height:
42"
Three-Speed Fan

Features low, medium and high settings, so you can choose the right fan speed for every cooking adventure, from gentle simmering to high-heat searing.

Requires 585 or 1170 CFM Motor Class Blower

Allowing you to customize a powerful ventilation system with your choice of commercial-style blowers.

Four LED Lights with Night Light Setting

Provide two levels of brightness, allowing you to illuminate the entire cooking surface below with natural-looking light or subtly accent the kitchen with a soft, inviting glow.

Removable Filters

Use multiple layers of screening to help capture the grease, steam and odors of high-heat cooking. Filters are removable for easy cleaning with soap and water.

KitchenAid® Custom Hood Liners

KitchenAid® Custom Hood Liners allow you to conceal ventilation within custom cabinetry or a decorative hood cover, creating a style all your own.

105,000 BTU Rating

pairs with KitchenAid® Commercial-Style Ranges, Rangetops and other models with total burner outputs up to 105,000 BTU.
