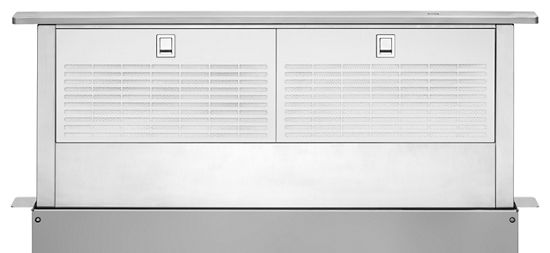

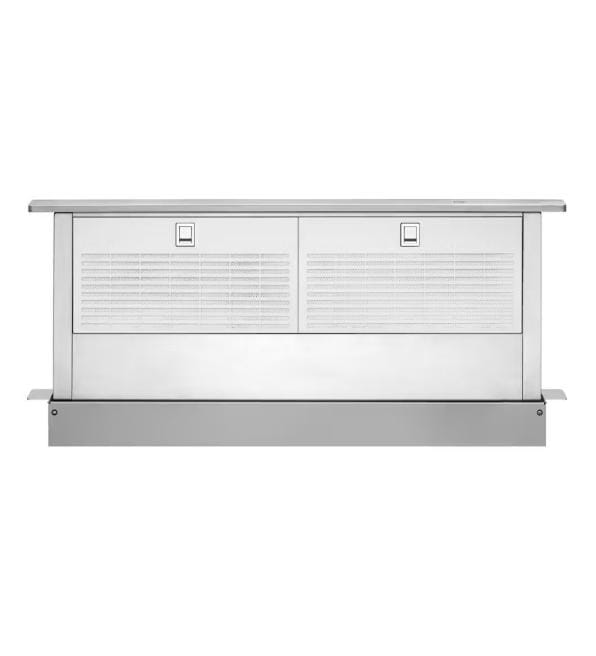

36" Retractable Downdraft System with Interior Blower Motor

Amana: UXD8636DYS
UPC: IMG
$1,331.10 $1,479.00
You save  $147.90 (10.00%)
Retractable downdraft systems remain flush with the cooktop surface until needed. A reversible motor box can be installed on either side of the downdraft, freeing up space beneath the cabinet. The 14-inch rise allows for greater smoke and steam capture.

New

Stainless Steel

Detail

Retractable downdraft systems remain flush with the cooktop surface until needed. A reversible motor box can be installed on either side of the downdraft, freeing up space beneath the cabinet. The 14-inch rise allows for greater smoke and steam capture.

Controls
Control Location:
Hidden
Control Type:
Manual
Number of Vent Speeds:
3
Details
Blower Type:
Centrifugal
Hood Type:
Retractable Downdraft
Material:
Stainless Steel

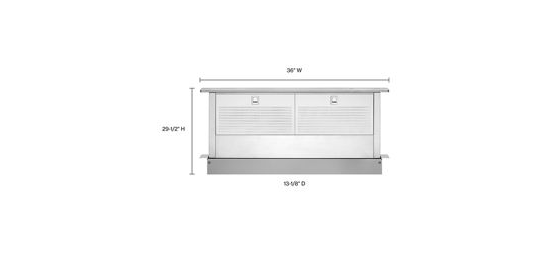

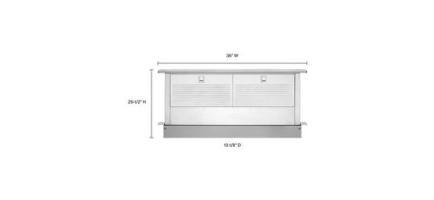

Dimensions
Depth:
12-1/8 in
Gross Weight:
100 lbs
Height:
28-1/2 in
Net Weight:
0 lbs
Width:
36 in
Ventilation Details
Filters:
N/A
CFM Motor Class:
585
Duct Direction:
Vertical
Duct Outlet Size:
3.25 W x 10 H in
Duct Type:
Round
Venting:
Exterior
Dimensions
Height:
42"
Powerful 600 CFM Interior Blower Motor Included

Touch-Activated Telescoping Operation

Keep the fresh air flowing during the peak cooking periods in your kitchen! Whirlpool® ventilation hoods feature variable-speed fan control for maximum relief. Hoods are designed to fit perfectly with today's kitchen layouts and designs and are available in a variety of colors, depending on the model.

Aluminum Grease Filters

Dual Centrifugal Blower

A barrel-shaped fan that moves air through a vent hood. A centrifugal fan moves more air, and operates more quietly, than an axial-type (bladed) fan.

Auto Off When Retracted

Damper

Brushed Aluminum Intake Cover Standard

Vertical Exterior Ventilation (3 1/4" x 10" Rectangular Duct)

A fan system located at the surface of a range or cooktop. It serves to draw steam and grease downward and out of the kitchen via ductwork placed under the floor.

Slide Controls

6.5 Vertical Sones (3-1/4" x 10")
