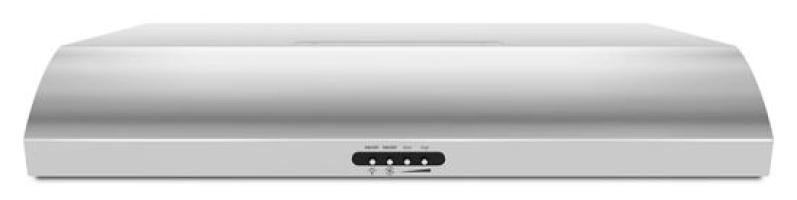

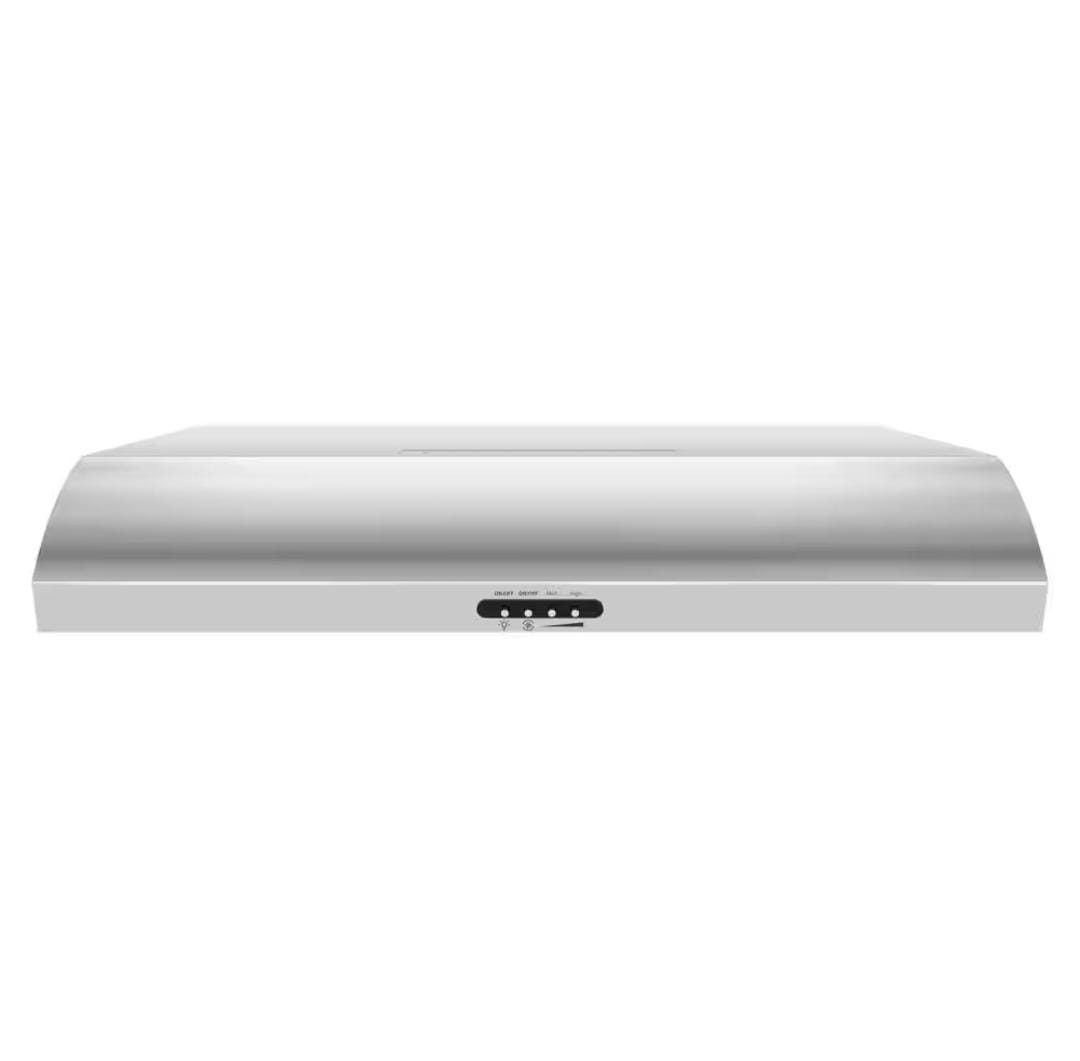

36" Range Hood with the FIT System

Maytag: UXT5236BDS
UPC: IMG
$476.10 $529.00
You save  $52.90 (10.00%)
Installing this stove hood with halogen lighting is quick and easy. The FIT system helps reduce measuring, cutting and trim for a smooth fit. The powerful 3-speed hood vent kitchen fan takes care of steam, grease, smoke and odors in the surrounding air.

New

Stainless Steel

Detail

Installing this stove hood with halogen lighting is quick and easy. The FIT system helps reduce measuring, cutting and trim for a smooth fit. The powerful 3-speed hood vent kitchen fan takes care of steam, grease, smoke and odors in the surrounding air.

Certifications
ADA Compliant:
Yes
Energy Star Qualified:
N/A
Star K Certified:
Yes
Controls
Control Location:
N/A
Control Type:
Push Button
Number of Vent Speeds:
3
Details
Blower Type:
Axial
Hood Type:
Under Cabinet
Material:
Stainless Steel

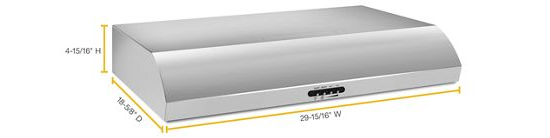

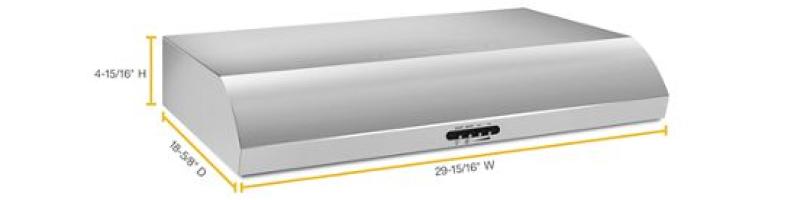

Dimensions
Canopy Height:
N/A
Depth:
18-5/8 in
Gross Weight:
19 lbs
Height:
4-15/16 in
Net Weight:
16 lbs
Width:
35-15/16 in
Ventilation Details
Auto Function:
N/A
Auto On:
N/A
Blower Motor:
N/A
BTU Threshold:
50 K
CFM Motor Class:
560
Damper Included:
N/A
Duct Direction:
Vertical or Horizontal
Duct Outlet Size:
3.25 W x 10 H in
Duct Type:
Rectangular
Exhaust Vent Location:
N/A
Filters:
Charcoal Odor Removing Filter
HVI (CFM HS Horizontal):
N/A
HVI (CFM HS Vertical):
N/A
Lighting Control Type:
N/A
Maximum Motor CFM:
N/A
Night Light:
N/A
Night Light Type:
N/A
Number of Night Light Settings:
N/A
Number of Task Light Settings:
1
Task Light Type:
Halogen
Task Lighting:
Yes
Vent Fan Location:
N/A
Vent Material:
N/A
Venting:
Exterior or Recirculating

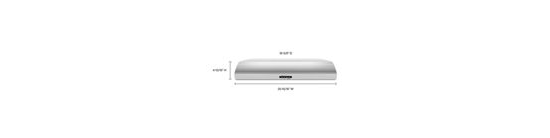

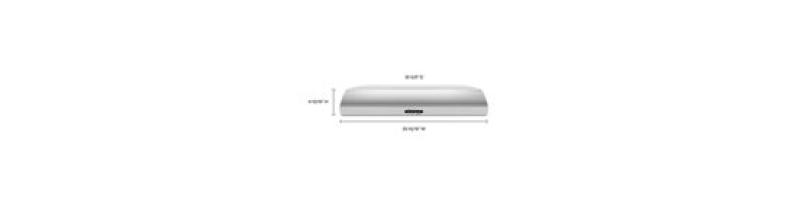

Dimensions
Height:
42"
Grease filter

The grease filter helps trap unwanted grease and helps remove odors.

FIT System

The FIT system eliminates measuring, cutting and trim for a perfect fit every time.

Hidden Vent

Halogen Lighting

Halogen task lighting makes it easy to see what you’re cooking with bulbs that make food look as appealing as it tastes.

Recirculation (Non-Vented/Duct-Free)

By not having to connect to outside air, this hood can be installed almost anywhere, including a condo. Recirculation happens through filters to help keep the air fresh.

Flexible ventilation options

A convertible design lets you install almost anywhere. When external ventilation isn’t an option, the hood’s fan will recirculate air through filters that capture grease and cooking odors to help keep the kitchen clean.

3-1/4" x 10" Damper

7" Round Damper
